How Does a Pasteurizer Work?
Plate pasteurizers consist of a series of plates. There are high-temperature resistant gaskets between the plates. These gaskets prevent the liquids passing through the plates from mixing. The plates are made of stainless steel with a thickness of 95-125 mm. The grooves on the plate create turbulent filling, increase the heat transfer surface and extend the liquid's heat contact time.

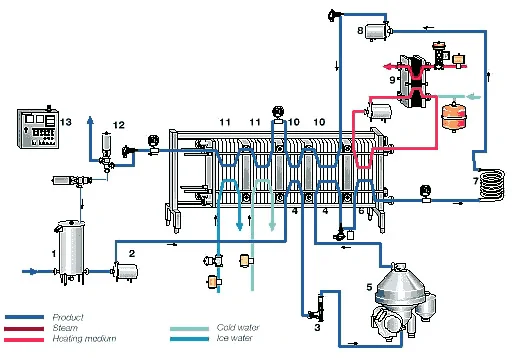

Pasteurizer Parts
- 1 - Balance tank
- 2 - Feed pump
- 3 - Flow control
- 4 - 1st and 2nd regeneration
- 5 - Separator
- 6 - Heater
- 7 - Holding tube
- 8 - Thrust booster pump
- 9 - Hot water system
- 10 - Cooler
- 11 - Valve
