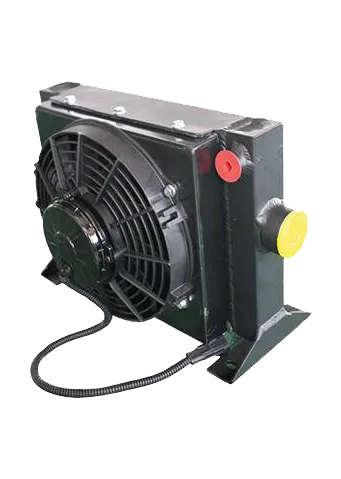

Fan oil coolers do not require the use of an additional fluid other than air and oil, they use air as a fluid. In terms of area, they occupy quite less space compared to other heat exchangers. Since they are less costly than other piping equipment, the cost of heat transfer is also lower. In places where fan oil coolers are not suitable, gasketed plate heat exchangers, brazed plate heat exchangers, and shell-and-tube heat exchangers are used.

FAN OIL COOLER PARTS

The components of an air oil cooler may vary depending on the specific design and application, but generally include the following elements:

1. Fins and Tubes: The fins on the tubes of a fan oil cooler play an important role in increasing heat transfer efficiency. These fins are designed as thin, protruding structures attached to the outer surface of the tubes through which the oil flows. Finned tubes direct the flow of air over the heat exchanger and provide efficient heat distribution, helping to optimize cooling performance.
2. Fan(s): Fans are used to pass air through the heat exchanger and enhance the cooling process. They are typically powered by electricity and can be mounted directly onto the cooler or remotely depending on the design.
3. Motor and Drive Unit: There is a motor and drive unit to operate the fans. This can be an integral part of the cooler or a separate unit depending on the design.
4. Mounting Brackets or Feet: These components provide a means to securely mount the air oil cooler to a machine or cooling structures. Mounting brackets or feet are designed to ensure stability and proper positioning.
5. Inlet and Outlet Connections: Ports for oil inlet and outlet are essential. These connections allow the flow of oil to the heat exchanger and facilitate the cooling process.
6. Temperature Control Devices (Thermostats): Fan oil coolers include temperature control devices such as thermostats or control valves to regulate the flow of oil or adjust the cooling capacity based on operating conditions.
7. Protective Grilles, Frame, or Casing: Designed to prevent foreign objects, residues, or unwanted materials from entering the fan oil cooler. It prevents potential damage to the heat exchanger or fans.

The specific design and features of an air oil cooler can vary depending on factors such as application, cooling requirements, and the type of machine designed for cooling.
