Ball valve has subtypes suitable for different needs.
Our Ball Valve Types;
- Body Design: Two-piece – Three-piece – Three-way
- Body Material Quality: AISI 304 -AISI 316
- Connection Type: Threaded Connection – Flanged Connection -Monoblock Wafer Type
- Seal Type: Ptfe
- Valve Control Mechanism: Lever - Electric actuator - Pneumatic actuator
- Working Pressure: We have products in the PN16 and Pn63 pressure class range.
- Max Working Temperature: 180 degrees
Main ball valve types are as follows. can be listed.
- Threaded ball valve
- Flanged ball valve
- Butterfly arm ball valve
- Mini ball valve
- Natural gas ball valve
1valve Two-Piece Stainless Threaded Ball Valve
- Gasket: PTFE
- Connection Type: Gear
- Body Material: AISI304 - AISI316
- Max. Operating Temperature: 180 °C
- Max. Working Pressure: 63 Bar
1valve Three-Piece Stainless Threaded Ball Valve
- Gasket: PTFE
- Connection Type: Threaded
- Max. Body Material: AISI316 - AISI304
- Max. Working Temperature: 180 °C
- Working Pressure: 63 Bar
1valve Stainless Flanged Two-Piece Ball Valve
- Gasket: PTFE
- Connection Type: Flanged
- Body Material: AISI304 - AISI316
- Max. Operating Temperature: 180 °C
- Max. Working Pressure: 16 Bar
- Connection: ISO5211
1valve Stainless Flanged Three-Piece Ball Valve
- Gasket: PTFE
- Connection Type: Flanged
- Body Material: AISI304 - AISI316
- Max. Operating Temperature: 180 °C
- Max. Working Pressure: 25 Bar
- Connection: ISO5211
1valve Casting Body Ball Valve
- Gasket: PTFE
- Body Material: Cast Iron
- Max. Operating Temperature: 150 °C
- Max. Working Pressure: 10 Bar
- Connection: Flanged
1valve Casting Body Ball Valve
- Gasket: PTFE
- Body Material: Cast Iron
- Max. Operating Temperature: 150 °C
- Max. Working Pressure: 16 Bar
- Connection: Flanged
1valve Electric Actuated Flanged Ball Valve
- Gasket: PTFE
- Body Material: AISI304 - AISI316
- Max. Operating Temperature: 180 °C
- Max. Working Pressure: 25 Bar
- Connection: Flanged
1valve Electric Actuated Threaded Ball Valve
- Gasket: PTFE
- Connection Type: Threaded
- Body Material: AISI304 - AISI316
- Max. Operating Temperature: 180 °C
- Max. Working Pressure: 63 Bar
- Connection: Threaded
Flanged Ball Valve with 1valve Pneumatic Actuator
- Gasket: PTFE
- Body Material: AISI304 - AISI316
- Max. Operating Temperature: 180 °C
- Max. Working Pressure: 25 Bar
- Connection: Flanged

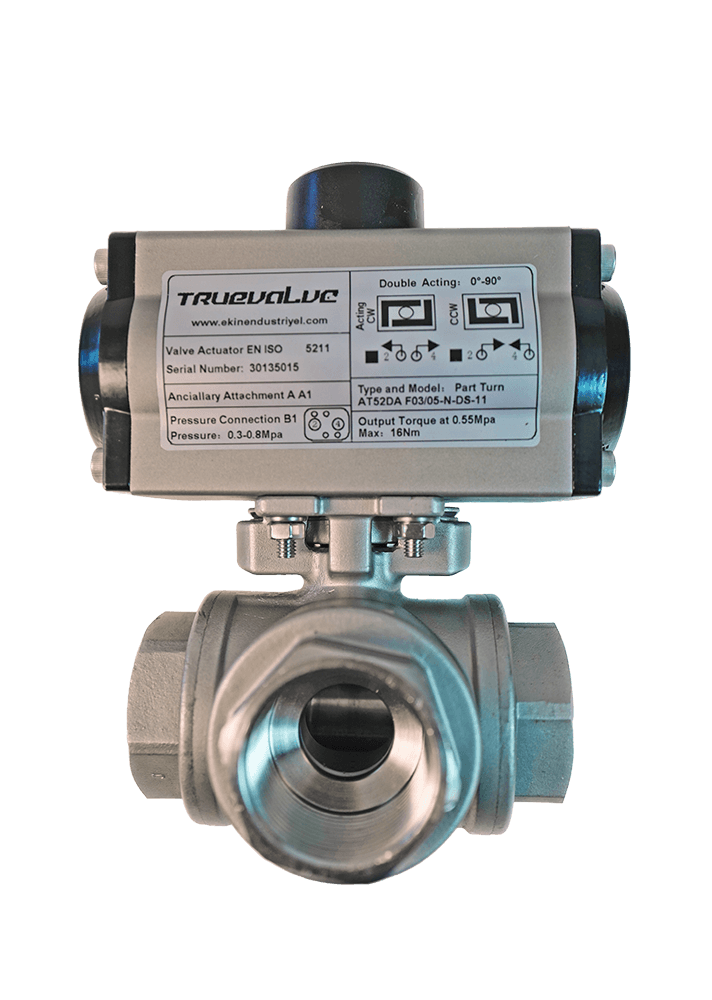

1valve Pneumatic Actuated Threaded Ball Valve
- Gasket: PTFE
- Body Material: AISI304 - AISI316
- Max. Operating Temperature: 180 °C
- Max. Working Pressure: 63 Bar
- Connection: Threaded
