What is a sound chamber, and what is its function in the system?

Buffer tank is a separation element that hydraulically separates primary (producer) and secondary (consumer) circuits in heating and cooling systems, damping flow and temperature fluctuations. It prevents sudden load changes at the boiler, cascade system, or chiller outlet from turning into thermal stress on the heat source, reduces back pressure and flow resistance in pumps, thus ensuring stable, quiet, and efficient operation while extending equipment life.

When should a balance tank be used?

``` In systems with multiple pumps and variable flow rate consumers, in cascade boiler or chiller applications, in installations where three-way valves are common, and in all scenarios where producer-consumer flows operate differently, the balance tank is preferred. This way, the primary circuit is stabilized in its most efficient flow while the secondary circuit freely responds to demands; typical problems such as short circuit at low load, insufficient flow rate at high load, and thermal sh...

What is the difference between the MIT Balance Tank and the classic balance tank?

While the classic balance tank serves only hydraulic separation and thermal balancing functions, the MIT Package Balance Tank also offers air separator and sludge retention functions within the same body. Non-dissolved gases are removed with automatic air venting at the top, and sludge accumulation is discharged in a controlled manner at the bottom; thus, without the need for separate equipment and additional piping, both the space and installation costs decrease, the circuit remains clean an...

How should a sound level meter be sized and where should it be placed?

Resizing aims to keep the pressure loss at a negligible level by creating low speed in the body and to increase the separation effect; in practice, it is essential to select very low internal speed and determine the appropriate diameter and height according to the total flow rate of the primary-secondary. The device is usually positioned close to the heat source and close to the primary pump suction; short and symmetrical connections are preferred with secondary collectors, an air vent is con...

How to choose material and pressure class, how to comply with standards?

The body material of the balance tank is selected according to system water chemistry and operating conditions; while carbon steel is common in central systems, stainless steel solutions are considered for applications with high corrosion risk. Connection types can be flanged, threaded, or welded according to the project; PN class and test pressure are determined according to operating pressure and temperature. MIT balance tanks are produced in compliance with relevant quality requirements an...

What should be considered in management and maintenance?

Before starting up, it should be checked that all drain points are working, the air vent is operational, and the bottom drain is securely connected. Periodic visual inspection, monitoring temperature differences and pump operating points, and if a package type is being used, regular sludge discharge is sufficient; these simple maintenance steps protect the heater source from thermal shocks, the pumps from hydraulic stress, and keep the system efficiency high for a long time.

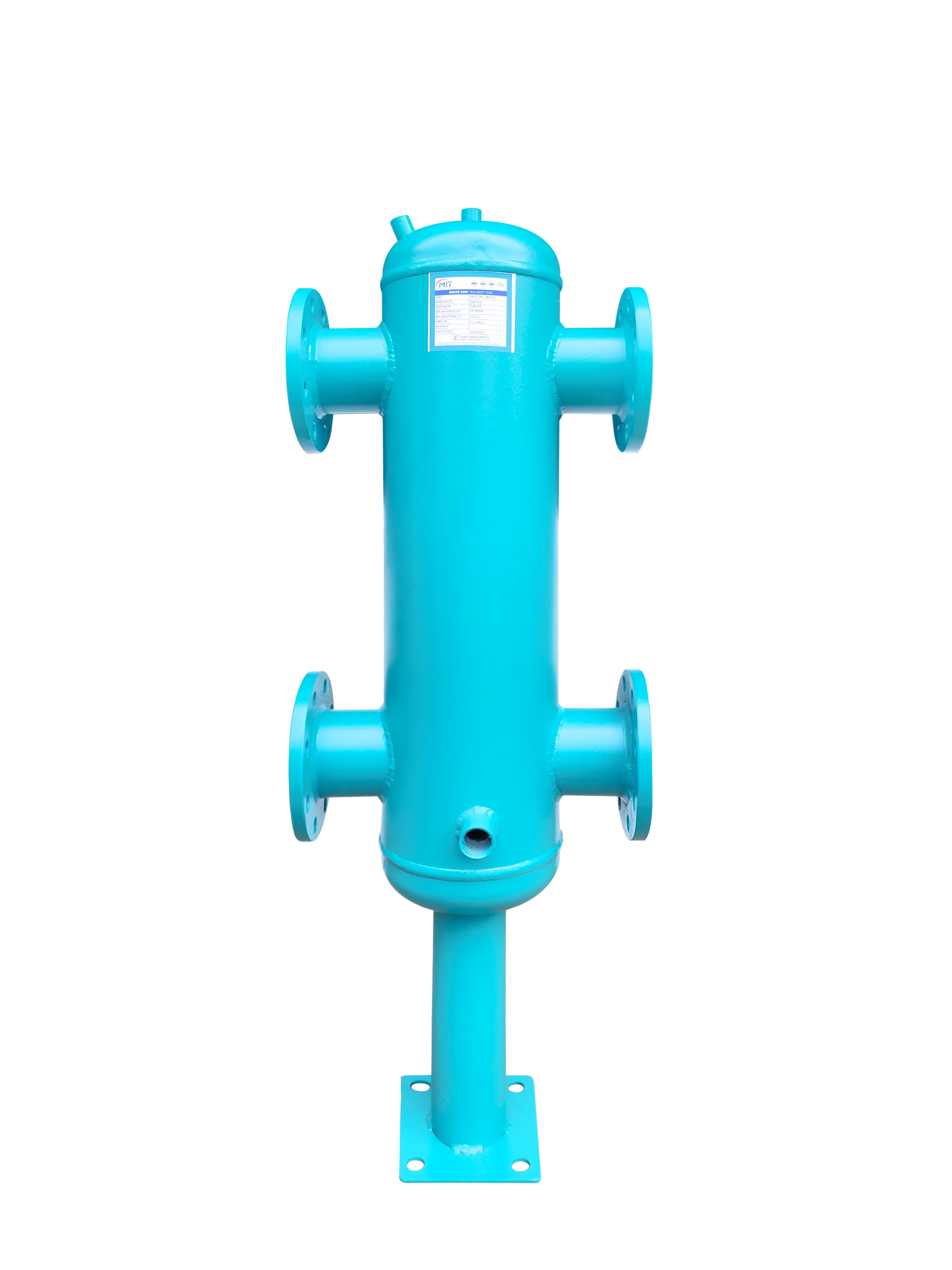

Balance Tanks | Ekin Industrial

Name: Balance Tanks
Brand: Ekin Industrial
Availability: InStock

Pressure Vessels / Balance Tanks/ Air Separators / Sediment Separators

Balance Vessels Balance Vessel In heating systems, the balance vessel is a protective plumbing equipment that balances the thermal temperature of the system, protecting it from thermal stresses and extending the equipment's lifespan.

General Information

Usage Areas

Quote Form

Food

Hygiene, safety, and process efficiency are top priorities in the food industry. Our hygienically designed, easy-to-clean, and stainless-steel-compatible solutions are ideal for applications ranging from dairy and beverage processing to juice, beer production, and food handling lines.

Automotive

In the automotive sector, temperature regulation and fluid control are critical in production lines, testing systems, and paint applications. Our compact and high-performance solutions help ensure process continuity, energy efficiency, and system reliability.

Maritime

Marine applications require durable, low-maintenance systems that can withstand harsh environmental conditions. Our corrosion-resistant solutions support efficient cooling, heating, and fluid management in various shipboard systems, even under demanding operating environments.

Heating, Ventilation, and Air Conditioning

Energy efficiency and system longevity are essential in comfort heating and hot water systems. Our engineered solutions support heating, cooling, ventilation, and domestic hot water applications, delivering optimal performance and sustainable energy use in building technologies.

Petrochemicals and Pharmaceuticals

These industries demand equipment capable of operating under high temperatures and pressures, and resistant to corrosive or aggressive gases and liquids. Our robust and chemically compatible system solutions ensure safe, continuous, and efficient operation in sensitive process environments.

Metal Industry

Metal processing involves exposure to extreme temperatures and pressures, requiring highly durable and reliable equipment. Our industrial-grade solutions provide stable performance and increased efficiency across production lines such as rolling, melting, and cooling systems.

Energy

In power generation, cogeneration, and heat recovery systems, energy efficiency and system durability are essential. Our high-efficiency solutions contribute to sustainable energy production and help reduce operational costs by enhancing thermal performance and system resilience.

Textile

Processes such as printing, dyeing, finishing, and drying require precise temperature control and energy management. Our specialized thermal solutions support textile operations by optimizing energy usage and improving overall process reliability and product quality.
