Safety and efficiency in fluid transfer are not limited to the capacity of pumps or the quality of main valves; a few well-chosen "small" fittings can determine the fate of the entire system. At the forefront of these small but critical elements is the check valve. A check valve is a safety barrier that prevents backflow by allowing fluid to move in only one direction, thus protecting pumps, pipelines, heat exchangers, tanks, and measurement-electronic equipment. The practical answer to "What is a check valve?" is that it is a passive protection mechanism that comes into play at the system's weakest moment—when the pump stops, flow is interrupted, or pressure fluctuates. It operates solely on flow and pressure differences without the need for a control signal, making it an energy-efficient, maintenance-friendly, and highly reliable solution.
When the pump is activated, the line is pressurized, and the check valve opens in the direction of flow, allowing the flow to reach the desired equipment. When the pump shuts down or there is an instantaneous pressure drop in the line, the check valve quickly seats the disc/ball/flap element to prevent the potential energy within the line from discharging backward. This rapid and leak-proof closure is vital for two reasons. First, it prevents backflow from reversing the pump, which can have destructive effects on the shaft, bearings, and mechanical seals. Reverse rotation not only shortens equipment life but also increases torsional stress on the shaft due to sudden moment changes, causing shock loads on the coupling and motor. Secondly, it controls the risk of water hammer caused by the sudden change in flow direction. Water hammer can trigger a series of problems ranging from gasket leaks, flange separations, gauge/measurement element failures, and in some cases, pipe bursts at the weakest points of the line. With the correct selection and proper installation of a check valve, these sudden pressure surges can be dampened, allowing the facility to operate more quietly, vibration-free, and safely.
Preventing backflow not only means avoiding mechanical damage but also provides significant gains in terms of process quality and energy efficiency. In multi-pump parallel systems, "by-pass" flow from the non-operating pump to the operating pump disrupts the effective use of capacities and leads to unnecessary energy consumption; the check valve closes these internal leakage paths. In vertical columns of high-rise buildings, it prevents the column from emptying during pump shutdowns, reducing time and energy losses during refilling. In chemical and food processes, it eliminates risks that directly affect quality, such as back siphoning between lines or product mixing; it supports the continuity of hygiene conditions by cutting off unwanted backflows in CIP/SIP cycles. In heat exchangers, it prevents leakage between hot and cold circuits, maintaining the stability of the heating-cooling regime, which allows for faster and more stable achievement of target temperatures in both comfort applications and industrial processes.
The impact of the check valve on system behavior is particularly evident during transient regimes: pump start/stop cycles, emergency shutdowns, sudden valve closing/opening movements, tank level changes, and pipeline filling and emptying. Therefore, the check valve is not just an accessory in the "nice to have" category but a safety element that comes into play at the most critical moment of scenarios. The closure speed must be fast enough to prevent reverse flow but controlled enough to avoid water hammer; the sealing surface must be selected to suit the fluid and temperature; the body material must be resistant to corrosion and erosion; determining the nominal diameter compatible with the speed, flow, and pressure values in the line is therefore important. A correctly positioned, correctly typed, and correctly sized check valve extends maintenance intervals, increases equipment life, and reduces the total cost of ownership. In short, when a small fitting is correctly selected, it manages big risks and serves as a strategic insurance for process safety and energy efficiency.
Check valves are passive safety elements that allow fluid to move in only one direction; they do not require external control to operate. The basic mechanism works by the movable part inside the valve—disc, ball, flap, or conical plug—responding to the pressure difference in the direction of flow. This behavior is defined by two critical thresholds: cracking pressure and reseat/closure pressure.
Cracking pressure is the moment when the pressure on the inlet side reaches a level sufficient to lift the valve element from its seat compared to the outlet side. Once this threshold is exceeded, the disc or ball separates from the sealing surface, creating a passage area; the flow begins, and the lift amount increases depending on the valve's internal geometry. In most designs, immediately after opening, the valve reaches a wider cross-sectional area with the flow; thus, initial local losses decrease, and a stable flow profile forms. Reseat pressure refers to the threshold at which the valve element reseats itself and closes the line under conditions where the flow decreases or stops. These two values are usually not the same; the difference, known as hysteresis, is designed to prevent the valve from unnecessarily "chattering" in fluctuating flow rates.
Not only the pressure difference determines the opening and closing behavior. Parameters such as spring preload and spring constant, the mass and moment of inertia of the valve element, seat angle and sealing material, internal flow channel geometry, and installation direction (horizontal/vertical) determine the character of the valve's response. For example, in spring-loaded check valves, the element is pressed against the seat by a spring force; this clearly defines the cracking pressure, provides controlled closure even at low flow rates, and increases the tendency to close before reverse flow begins. In gravitational/swing types, the cover opens with the flow; when the flow weakens, the weight of the cover and reverse pressure cause it to close. While this design provides a wide passage area and reduces pressure loss, the closure time may be longer compared to spring designs.
The value of "quick closure" emerges in the context of water hammer. When the pump suddenly stops or a rapid valve closure occurs in the system, the momentum of the moving fluid tends to produce a pressure wave in the reverse direction. A check valve that can close quickly and leak-proof helps dampen these sudden pressure surges by seating the element before the flow reverses. The goal here is to keep the closure time shorter than the time required for the flow to reverse. Therefore, nozzle/axial flow designs known as "non-slam" or spring-loaded poppet valves are preferred, especially at pump outlets, to control water hammer. In these valves, the movement of the disc is parallel to the flow axis; short stroke, low mass, and preloaded spring ensure the element closes at high speed and without vibration. The seating angle of the cover and the sealing surface (metallic, PTFE, elastomer) also determine the energy dissipation and micro-leakage risk during closure; metal-to-metal contact seats provide durability in high-temperature/pressure environments, while elastomeric seats offer performance approaching "bubble-tight" sealing at moderate temperatures.
The flow regime is also important. The speed (v) passing through the valve, the fluid viscosity, and the valve's Cv/Kv value allow the valve element to "float" in a stable position. If the flow rate is very low and the valve is oversized, the disc/flap may not reach the fully open position; even small fluctuations in the flow can cause the element to open and close quickly, resulting in chatter. This does not only mean noise and vibration; it also means rapid wear on parts such as the seat, hinge, pin, and spring, and deterioration in sealing. Conversely, if the valve is undersized, it increases speed and turbulence, enlarging the pressure loss; it raises energy consumption and increases the impact forces on the seat during closure, paving the way for impact damage on the element/seat surface. Therefore, instead of estimating the nominal diameter in sizing, actual flow rates, speed limits, and acceptable Δp should be the basis.
The installation direction and the topology of the line also affect the closure dynamics. In vertical lines with upward flow, the natural lifting effect of the flow supports opening; when the flow stops, the element closes stably with gravity and reverse pressure. In horizontal lines, the mass of the valve element and the hinge position, especially in swing types, determine the closure speed; therefore, a placement close to the pump outlet but not too close to turbulence sources like elbows/T connections should be preferred. Turbulence can disrupt the balance of the element and create a tendency to close/open prematurely. Additionally, a strainer (Y-strainer) placed in the inlet line in dirty fluids helps protect the seating and disc surfaces from scratches, maintaining sealing during closure.
To improve the closure profile, some advanced designs offer solutions where spring preload can be adjusted, low inertia discs, and short stroke; dual-plate/wafer designs in large diameters provide area and weight advantages with spring-assisted closure. In critical processes, especially compressor outlets, high-rise building columns, or long transmission lines, choosing a non-slam check valve significantly reduces failures caused by water hammer. In food/pharmaceutical lines, in addition to quick closure, hygienic design and cleanability (CIP/SIP) requirements come into play; sealing material, surface roughness, and reduction of dead volumes become as critical as closure.
In the final analysis, "cracking pressure" and "quick closure" are not just two technical terms but strategic design goals that determine the impact of the check valve on energy efficiency, equipment life, and process safety. An appropriate opening threshold and controlled closure prevent pump reverse rotation, product back siphoning, unwanted mixing between heat exchangers, and equipment wear caused by water hammer. A check valve selected with the right type and sizing ensures stable and quiet operation of the line even in the most challenging transient regimes; while reducing the total cost of ownership, it adds an invisible insurance to system safety.
Main Types of Check Valves and Where They Shine?
Swing Check Valve
In a swing check valve, the element that cuts off the flow is a circular cover that swings around a hinge pin. When a pressure difference occurs in the direction of flow, the cover opens upward, and when the flow decreases, it returns to its seat due to gravity and reverse pressure. Its internal structure offers a wide passage area, making it work with low pressure loss, especially in low/medium pressure water lines and large diameters. Its simple mechanism makes maintenance easy; the cover and seat surface can be easily checked and replaced. These features highlight swing check valves in drinking water and process water circuits, wastewater pumping lines, HVAC circulation systems, and general industrial service lines.
However, the closure movement occurs over a longer period compared to spring designs. When the pump stops suddenly or a rapid valve closure occurs within the line, the cover may allow very short reverse flow, increasing the risk of water hammer. In long transmission lines or frequently stopping/starting pump stations, this risk should be taken seriously, and if necessary, a valve with non-slam characteristics should be considered. Installation direction directly affects performance: top-cover types work more stably in horizontal lines; in vertical lines, reliable closure is obtained only with upward flow. In dirty fluids, particles coming to the closure surface of the cover can weaken sealing, so placing a strainer at the inlet or considering ball-type valves is beneficial. Depending on the sealing requirement, metal seats (in high-temperature and steam lines) or elastomer/PTFE seats (cold/warm service waters) can be preferred.
Lift Check Valve
In a lift check valve, the disc lifts from its seat with linear movement in the direction of flow; when the flow decreases, it reseats itself due to spring/gravity and reverse pressure, providing sealing. The controlled movement of the disc within the guide offers a central and clean closure character at high differential pressures. Due to this structure, it is suitable for high-pressure classes and high-temperature conditions; it is widely used in steam and condensate lines, process gases, compressed air, and inert gas circuits. The seat-disc contact surface can be metal-metal or hardened alloys; thus, resistance to temperature and erosion increases.
Compared to the swing type, the internal flow section is more restricted, so the pressure loss is generally higher. Therefore, the lift type is not the first choice in large-diameter water lines where very low pressure loss is desired. On the other hand, it is one of the designs that provide the most reliable sealing in clean fluids and under high differential pressure. It works seamlessly with upward flow direction in vertical lines and with correct alignment in horizontal lines; avoiding installation too close to turbulent areas reduces disc vibration and noise.
Spring (Poppet/Nozzle) Check Valve
Spring check valves—poppet or nozzle (axial flow) architectures—press the valve element against the seat with spring preload. This preload, which clearly defines the cracking pressure when the flow starts, helps the element close quickly and without vibration when the flow decreases. In nozzle type, the disc movement occurs parallel to the flow axis and with a short stroke, reducing the closure time and seating the element with low inertia. For this reason, spring/nozzle designs are known for their non-slam character and are a strong solution in water hammer control.
On the application side, these valves stand out in pump outlets, high-rise building columns, frequently stopping/starting booster and process lines, compressor discharges, and the protection of critical equipment. Quiet operation, low vibration, and long maintenance intervals provide significant advantages to the user. The point to pay attention to is correct sizing: If oversized, the disc may not remain stable in the fully open position at low flow rates, and chatter may occur; if undersized, speed and Δp increase. Therefore, actual flow rates, desired speed range, and acceptable pressure loss should be considered in selection. For sealing, elastomeric seats provide "bubble-tight" performance; metal seats are preferred in high-temperature/gas services.
Ball Check Valve
In a ball check valve, the element that opens and closes the flow is a single ball. The simple and free movement of the ball provides high tolerance against clogging in viscous, particle-containing, or fibrous fluids. Therefore, it is a practical and low-maintenance solution in wastewater and slurry fluid lines, food processes, sugar, starch, milk, and CIP/cleaning chemicals applications. In some designs, the ball is slightly eccentric or elastomer-coated; this improves sealing and helps particles flow away without getting stuck between the seat and the ball.
Despite the advantages of ball check valves, the risk of aging of elastomer seats at very high temperatures and the closure impact due to ball weight/acceleration in large diameters should be considered. Other types may be more suitable in lines with continuous high speeds and where very low pressure loss is critical. When correctly selected, a ball check valve is a true workhorse with its "plug-and-play" simplicity, resistance to clogging, and easy serviceability.
Dual Plate (Wafer) Check Valve
Dual plate check valves are wafer-type valves with a cover structure consisting of two half discs that are closed towards the central axis by a torsion spring. Their placement with a thin body between flanges provides great advantages in terms of both weight and installation space. Especially in large diameters, they manage high flows with low mass and suitable Δp in seawater/cooling water circuits, HVAC primary/secondary lines, chemical process water, and general service lines. Spring-assisted closure supports non-slam behavior by allowing the discs to quickly return to the central axis before reverse flow starts; noise and vibration remain low.
The compact body is also a preference in skid and package systems. Depending on the sealing requirement, soft seat (EPDM, NBR, FKM, PTFE) or metallic seat options are available. For maintenance, the valve needs to be removed from the line; therefore, designing with isolation valves provides ease of service. To ensure smooth flow, if possible, leave sufficient straight pipe distance at the inlet and avoid proximity to elbows/tees, contributing to the symmetrical opening and closing of the discs and long life.

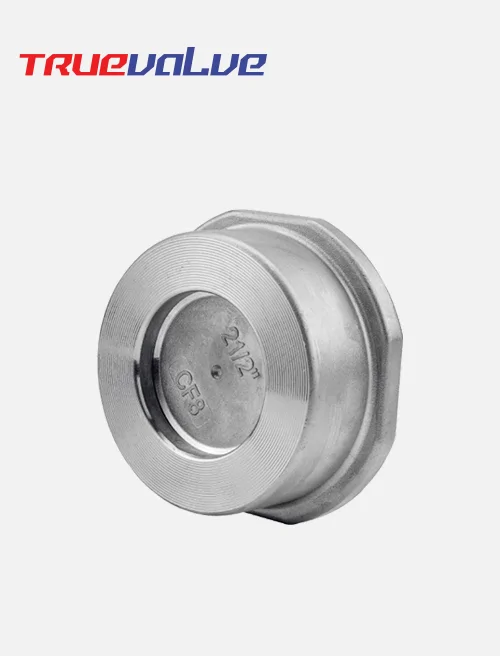

Wafer Type Check Valves
The term "wafer" is actually a connection/placement form factor; swing, lift, or spring architectures can be offered in wafer bodies. The common denominator is that they offer a light and economical solution with a thin, compact body that fits between flanges. This structure makes them ideal for narrow equipment rooms, skid-mounted package systems, modular heating/cooling units, and process skids. In HVAC applications, space advantage and easy installation make wafer type check valves extremely common. During installation, mechanical details such as gasket alignment, flange opening, and stud lengths should be meticulously controlled; as the thin structure of the body reduces tolerance to misalignment.
It should be remembered that the wafer form factor is not a single type: wafer-swing shines in water lines with wide passage area and low Δp; wafer-dual plate shines in large diameter and high flow with lightness; wafer-spring/nozzle shines in critical lines where non-slam character and water hammer control are required. When making a selection, not only the form but also the internal architecture and closure dynamics should be considered.
Quick Decision: Which Type When?
If pressure loss is the most critical criterion and the fluid is clean water, swing; if high pressure/temperature and reliable metallic sealing are required, lift; if water hammer risk is high, the pump frequently stops/starts, or column emptying is not desired, spring/nozzle (non-slam); if particulate/viscous fluid and low maintenance are targeted, ball; if large diameter, light, compact, and easy placement is sought, dual plate/wafer; if limited installation space and package system-focused setup is desired, wafer-bodied designs are the right choice. Correct type selection not only prevents failures but also increases energy efficiency, extends equipment life, and significantly reduces the total cost of ownership of the line.
Material and Connection Alternatives
Check valve bodies are produced in a wide range including cast iron, ductile cast iron, carbon steel, stainless steel (AISI 304/316), bronze/brass, and thermoplastics (PVC–U, CPVC, PP, PVDF). Sealing surfaces and gaskets are designed with elastomer (EPDM, NBR, FKM), PTFE, or metallic surfaces according to the chemical and thermal conditions of the process. Connection options vary as flanged, threaded, butt/socket weld, and wafer type. When determining the material, the corrosiveness of the fluid, temperature-pressure range, hygiene conditions, and regulatory requirements (e.g., hygienic design in food/pharmaceutical lines) should be considered.
Correct Check Valve Selection: Pressure Loss, Closure Feature, and Total Cost
The backbone of check valve selection is gathered under three headings: pressure loss, closure behavior, and cost. Pressure loss directly affects pump energy consumption; an undersized valve increases speed/turbulence and losses. Closure behavior is critically important, especially in reducing water hammer during pump shutdowns; spring/nozzle designs make a difference in sensitive processes as they can close before reverse flow starts. Cost should be evaluated not only as the initial purchase price but also as the life cycle cost including maintenance frequency, downtime, and energy consumption. The right valve, even if it seems slightly more expensive in the initial investment, reduces the total cost in the long run.
Water Hammer and "Chatter" Control
Water hammer causes sharp rises in line pressure due to sudden changes in fluid momentum; it has abrasive effects on flanges, gaskets, and equipment. The closure time and kinematics of the check valve play a key role here. Spring preload adjustable or nozzle type check valves provide sealing without allowing the flow to reverse. Another problem, "chatter" (rapid opening and closing of the check valve due to flow fluctuations), is both a source of noise and early wear. Chatter usually occurs due to an oversized valve, low flow, and turbulent flow regions (immediately after elbow, reduction, T connection). The solution is correct sizing, placement in a suitable section of the line, and using a strainer (Y-strainer) at the inlet if necessary.
Points to Consider During Installation
The flow direction arrow on the check valve body should be followed. Swing types perform best in horizontal; they work smoothly in vertical lines only with upward flow. Spring and nozzle types offer greater flexibility in both horizontal and vertical positions. Positioning the valve very close to the pump outlet helps reduce water hammer; however, it is necessary to avoid placing it immediately after turbulent regions like elbows/tees. If there is a possibility of contamination at the inlet, using a strainer prevents scratching of the valve's disc/seat surfaces and deterioration of sealing.
Sectoral Applications: Why Does Almost Every Line Need a Check Valve?
• Hydraulic Systems: Pressure drop and backflow disrupt actuator performance and position stability. Spring check valves provide controllability by keeping the pressure "in place."
• LPG/CNG and Fuel Lines: Backflow affects safety risks and line stability. Fast-closing, high-sealing designs should be preferred.
• HVAC and Booster Systems: Back discharge into the pipeline during pump shutdowns prevents the facility from remaining continuously pressurized. The check valve prevents column emptying and pump reverse rotation.
• Water and Wastewater: Ball and swing types offer clogging-tolerant, maintenance-friendly solutions in particle-containing fluids.
• Steam and High Temperature: Metallic sealing and lift designs stand out for their resistance to temperature and pressure.
• Chemical, Food, Pharmaceutical: Material compatibility/hygiene requirements are decisive; stainless body, PTFE sealing, and CIP/SIP compatibility are sought.
Failure Symptoms and Maintenance Tips
Constant noise and vibration are clues that the check valve is not closing properly or that chatter is occurring. Pressure fluctuations indicating reverse flow, sudden impact sounds in the lines, and frequent pump cycling are also alarm signals. During periodic maintenance; the disc/cover surface, seat, spring preload, hinge pin/bushings, and gaskets should be checked; surface scratches and elastomer hardening should be observed. In processes with high contamination load, strainer cleaning and sediment removal from inside the valve directly improve sealing.
Energy Efficiency and Sizing: "Right Valve, Right Point"
The check valve can be the hidden energy consumer of the line. If oversized, it operates unstably at low flow; if undersized, speed and loss increase. In sizing, the criteria should be actual flow, flow speed, and acceptable pressure loss, not nominal diameter. A high-efficiency pump investment can turn into unexpected energy bills with an unsuitable check valve. When evaluated with a life cycle cost perspective (energy + maintenance + downtime), the correct check valve selection pays for itself in a short time.
Differences Clarified with Application Scenarios
• Frequent Start/Stop at Pump Outlet: Spring/nozzle check valves minimize water hammer by closing before reverse flow starts; they operate quieter and more stably compared to swing designs.
• Particulate Wastewater Line: The wide passage area and simple mechanism of ball check valves reduce clogging risk; extend maintenance intervals.
• Steam Process: Rising disc and metal-sealed designs provide reliable sealing alongside resistance to temperature and pressure; concerns about elastomer aging decrease.
• Limited Installation Space: Wafer/dual plate check valves easily fit between flanges with their compact structures; offer weight advantage in large diameters.
Frequently Asked Short Questions
Do check valves and butterfly/ball valves do the same job? No. Butterfly or ball valves are "control/repair" purposes operated by hand/actuator; check valves serve the automatic backflow prevention function. They do not replace each other and are usually used together. Does a check valve alone solve water hammer? It can greatly reduce it; however, in long lines and high speeds, it should be considered together with air chambers, slow-closing control valves, or surge arrestor accessories. Can a check valve be used in a vertical line? Yes; but it varies by type. Spring/nozzle designs work safely in vertical; in swing types, the flow direction should be from bottom to top. Which material? The chemistry and temperature of the fluid determine it. In corrosive fluids, stainless/alloys or thermoplastics; if the temperature is high, metallic sealing is preferred.
Conclusion: Manage Big Risks with a Small Fitting
A check valve ensures the safe one-way flow of fluid, protecting pumps, pipelines, and process equipment; it contributes to energy efficiency and enhances system stability. A check valve selected with the right type, right material, and right sizing—especially when optimized in terms of closure dynamics and pressure loss—not only prevents failures but also reduces the total cost of ownership of the line.
As Ekin Industrial; with our wide product range including swing, spring/nozzle, ball, dual plate, and wafer type check valves, we offer engineering support for the most suitable check valve selection for your application. When you reach us with your project data (fluid, flow rate, temperature, pressure, line configuration), we can design a solution together that reduces water hammer risk, minimizes pressure loss, and ensures long life.
